Concrete mixing and conveying integrated machine

Concrete mixing and conveying integrated machine

The integrated concrete mixing and conveying machine is an important manifestation of the mechanization and intelligence development of construction engineering. It provides an efficient, economical, and flexible perfect solution for small and medium-sized concrete construction through functional integration. Choosing a suitable mixing and conveying integrated machine can significantly improve construction efficiency and reduce overall costs, making it an indispensable tool in modern construction.

Product ModelJBT50-10-50JBT50-10-85
Maximum theoretical transport capacity50m³/h50m³/h
Theoretical vertical conveying distance180m180m
Theoretical horizontal conveying distance400m400m
Productivity18m³/h18m³/h
Pump motor power37kw45kw
Mixing motor power5.5kw5.5kw
Crane motor power4.5kw4.5kw
Fuel tank capacity350L350L
Roller size1460*1800mm1460*1800mm
Overall dimensions5100*2120*2700mm5300*2150*2700mm
Total weight4500kg5600kg

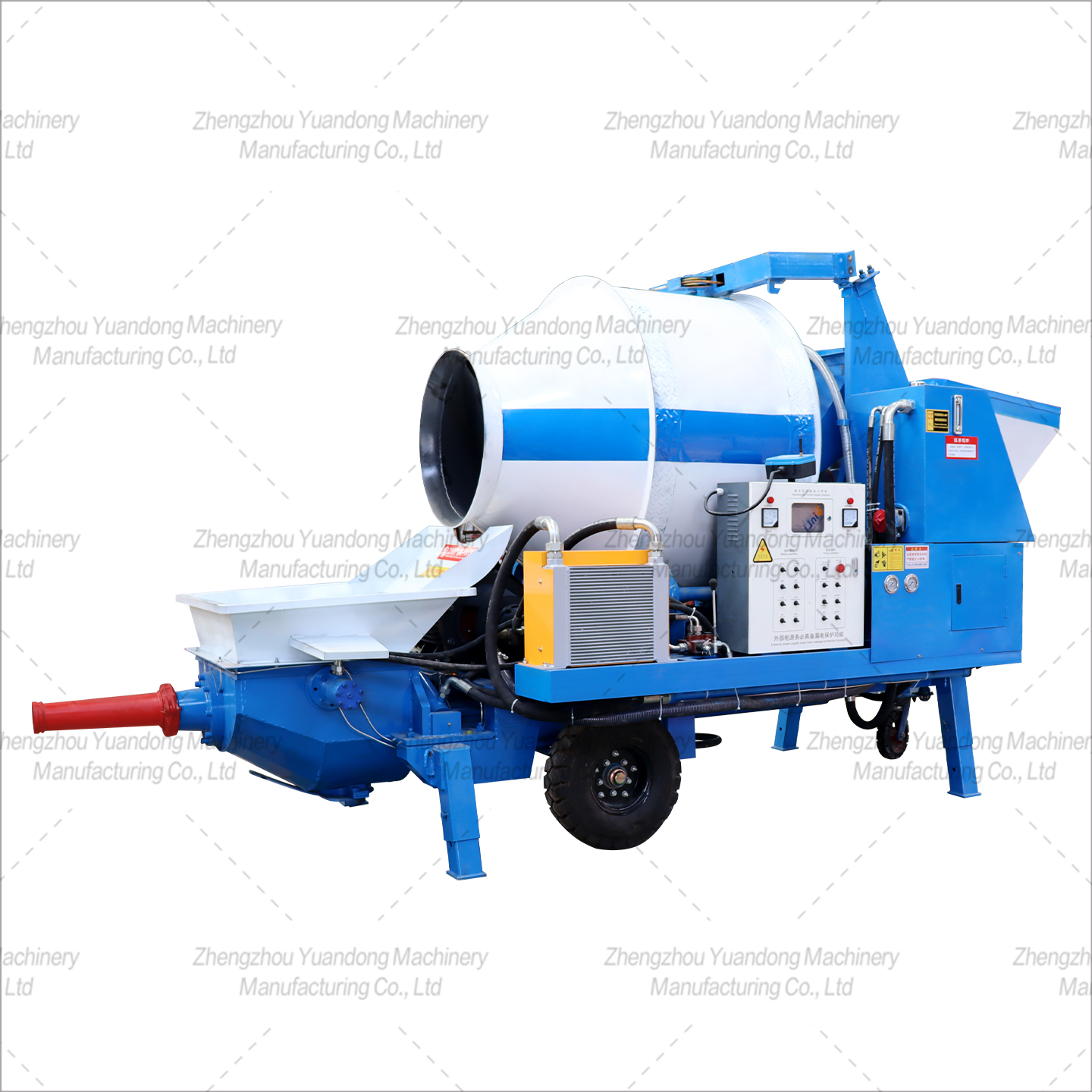

Concrete mixing and conveying integrated machine(图1)

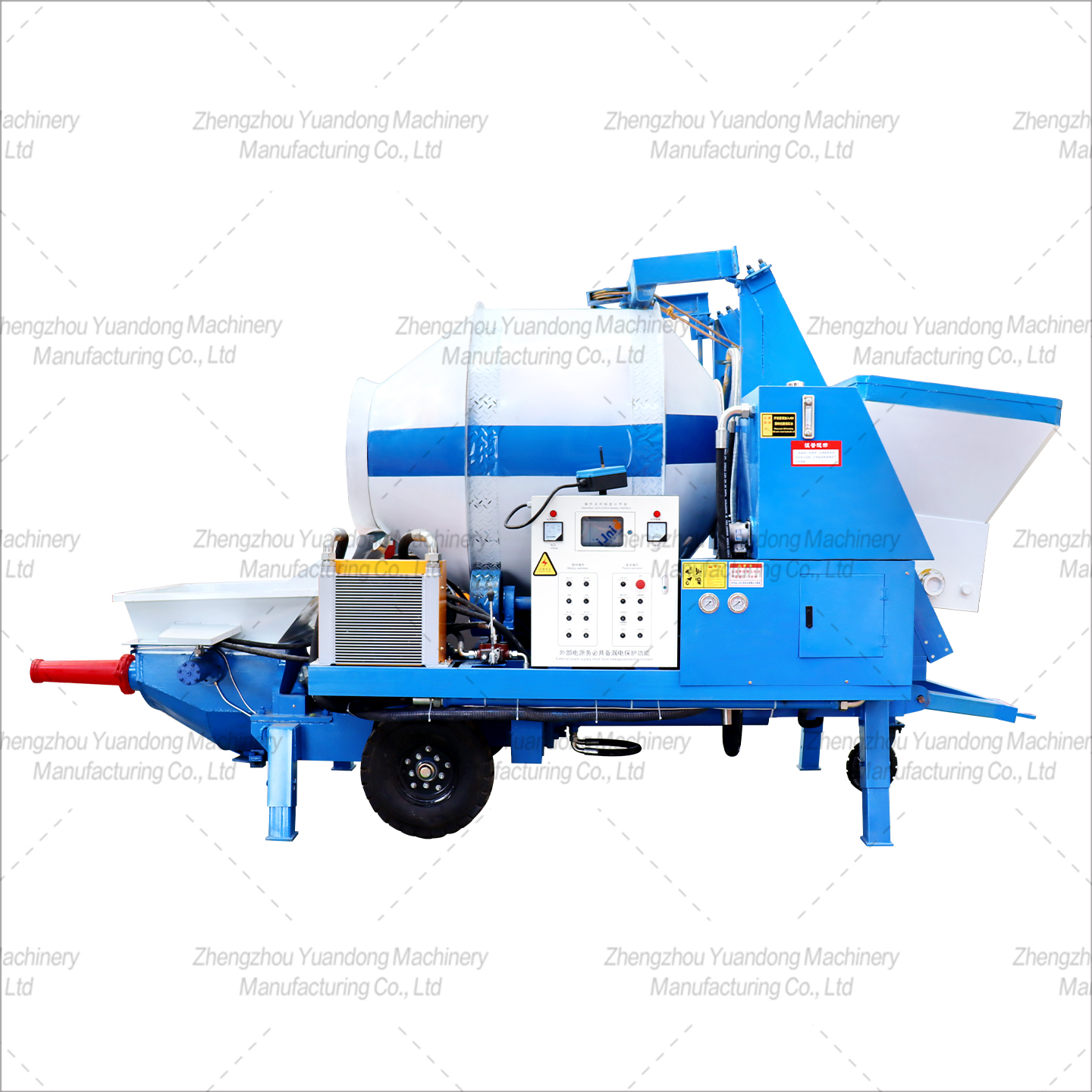

Concrete mixing and conveying integrated machine(图2)

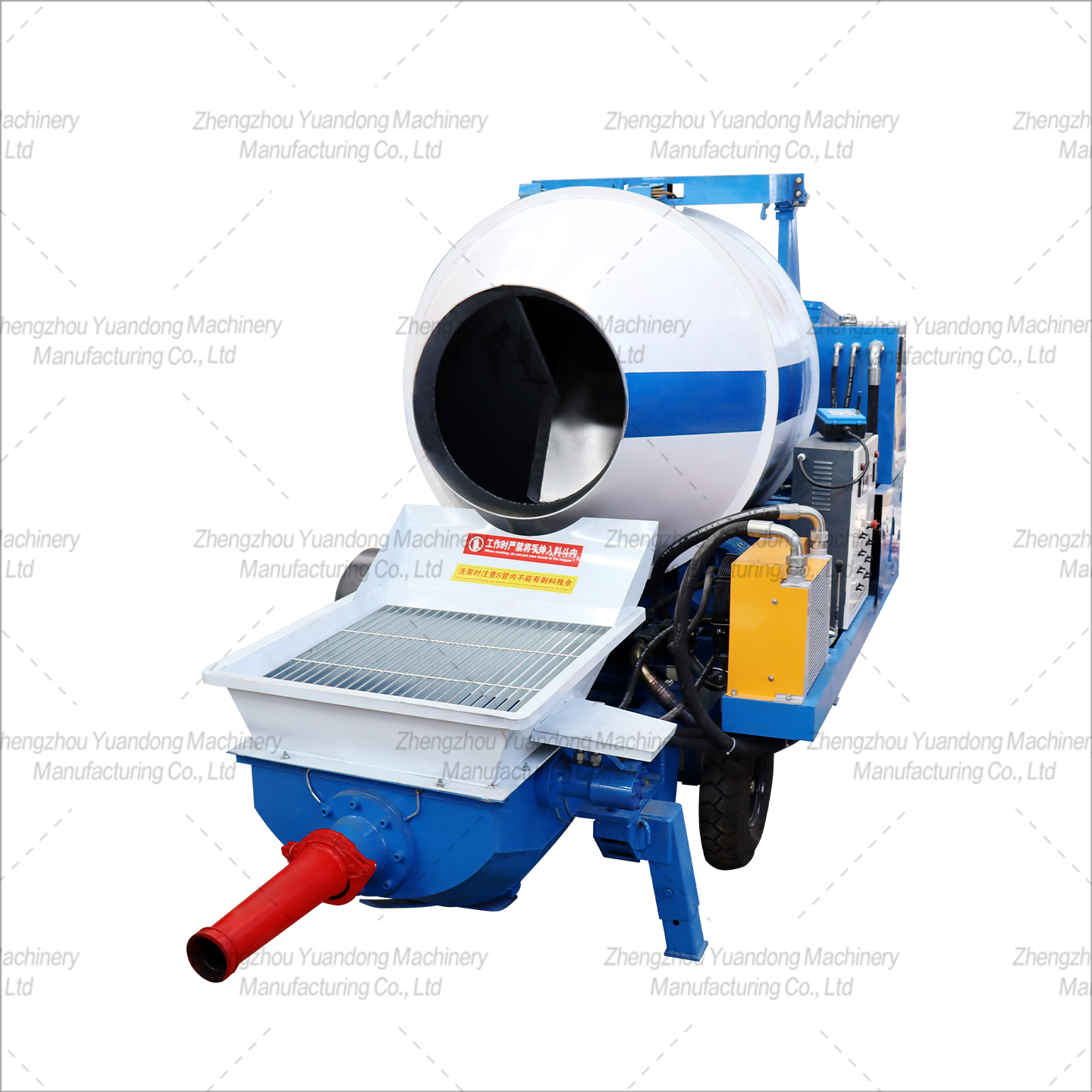

Concrete mixing and conveying integrated machine(图3)

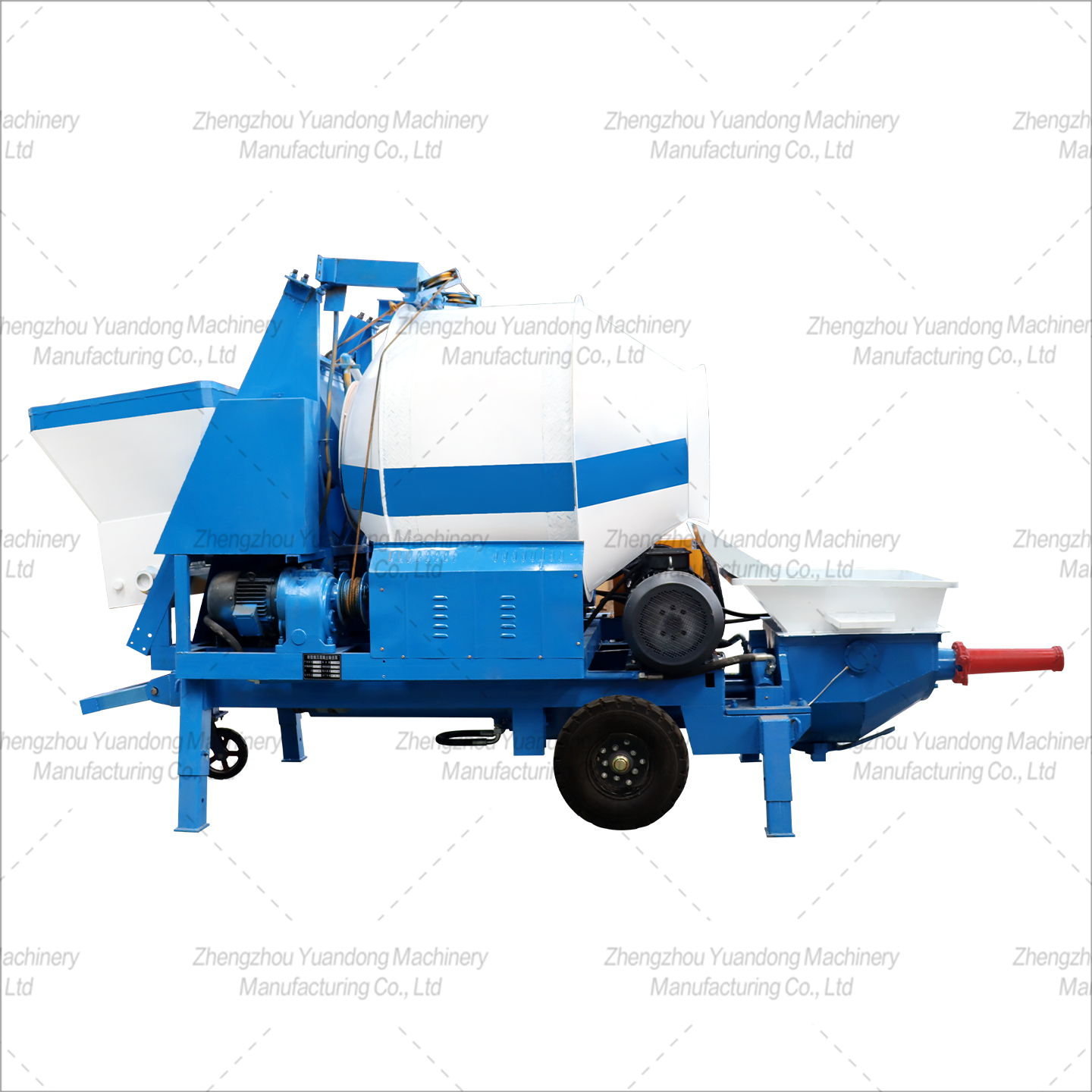

Concrete mixing and conveying integrated machine(图4)
